High Layer Count PCB Manufacturing for Complex Electronics
At WellPCB, we manufacture high layer count PCBs for high speed electronics, telecommunications and demanding applications across the aerospace, automotive and medical industries.
Each multilayer PCB is engineered with premium HDI and controlled impedance materials, fabricated to IPC Class 3 standards, and supported with complete PCB assembly services.
Turnaround starts at 2 weeks for expedited high layer PCB prototypes, with standard production in 4 to 5 weeks.
- Layer count from 1 to 64 with HDI and dense routing support.
- Stack up design with signal integrity and via optimization.
- Visual, AOI, ICT, FCT and X-Ray testing included.
google
ISO9001 ISO13485
ISO14001
IATF
16949
IPC-A-610H International
Certification
Fully Automated
AOI Inspection
High Layer Count PCB for
Signal Intensive Applications
High layer count PCBs are commonly used in telecommunications infrastructure, data center servers and aerospace avionics requiring many layers for signal integrity.
These multilayer PCB designs deliver stable high speed performance while maintaining controlled impedance and reliable circuit board operation in demanding electronics environments.
The multilayer PCB market is on track to grow 5.7% per year and may reach $144.7 billion worldwide by 2032 according to PR Newswire. This growth is driven by 5G deployment, automotive electrification, and the expansion of AI and high-performance computing infrastructure.
WellPCB builds high layer count PCBs with stack-up optimization, HDI technology and signal integrity validation in mind, whether you’re prototyping complex electronics devices or scaling to production volumes.
Our fabrication team processes multilayer materials using advanced via drilling techniques with precision laser-cut features and controlled impedance specifications.
Substrate qualification includes dielectric testing and signal layer verification before circuit board patterning. Features like microvia interconnects and HDI PCB structures are validated for electrical properties and dimensional tolerance compliance.
Our High Layer Count PCB Capabilities
WellPCB specializes in high layer count PCB fabrication with precision engineered capabilities that support 1 to 64 layer stackups, advanced via structures and stringent controlled impedance targets.
From multilayer material systems to ultra-fine trace geometries, our solutions meet the most demanding PCB design and performance requirements across telecommunications, computing, aerospace and industrial electronics sectors.
Our PCB manufacturing process incorporates blind, buried, via-in-pad, and stacked vias to enable high density interconnection between different layers.
We support sequential build-up (SBU) techniques for complex 3-stack HDI configurations. Back-drill stub control ensures 2 to 10 mil residual stub lengths for improved signal clarity in high-speed designs.
WellPCB processes FR4, High Tg FR4, and halogen free substrate materials for diverse electronics applications.
High-frequency PTFE materials including Rogers TC350 and Aerowave support RF and microwave circuit board designs. Rogers materials such as RO4350B and TC350 are qualified for RF and high-speed multilayer builds.
Copper layers are available from 0.5 to 5 oz weight across different layers to meet current-carrying requirements.
Dielectric constant (Dk) ranges from 2.2 to 10.2, with Tg values up to 536°F (280°C) depending on the selected material system.
Our PCB fabrication achieves minimum trace and spacing dimensions of 3 mil (0.075 mm) for high density circuitry applications. Signal layer routing maintains trace width and spacing tolerances of ±10% in critical signal areas.
Layer registration accuracy of ±5 mil ensures precise alignment between adjacent layers for optimal controlled impedance performance.
WellPCB provides ENIG, Immersion Silver, and OSP surface treatments for diverse assembly requirements. Leaded and lead free HASL options ensure solder compatibility across different electronics manufacturing processes.
Hard Gold plating serves edge contacts and connector interface applications. Selective ENIG combined with OSP enables mixed-finish PCB designs for complex multilayer assemblies.
Our PCB design process maintains controlled impedance tolerances within ±8% for high speed signal applications. Engineering review follows IPC standards for multilayer PCB designs.
Differential pair routing and length matching support ensures signal integrity across many layers. Crosstalk suppression uses dedicated ground plane and power plane configurations between signal layer routing.
We offer DFM analysis for every PCB order, with early stage PCB design reviews including stack up planning and thermal/signal modeling. Prototypes are manufactured in 3 to 5 days, with drill and panelization optimization to reduce low yield risk.
We simulate thermal cycling and signal integrity scenarios prior to fabrication helping customers validate the number of layers required for thermal dissipation and routing density in high layer PCB systems.
Our testing suite includes AOI, X-ray, flying probe, ICT and destructive analysis (CAF, vibration, thermal shock).
We follow ISO 9001:2015 standards for interconnect reliability and workmanship quality, AS9100D for aerospace-grade PCBs, and we’re UL and RoHS compliant.
Every printed circuit board undergoes traceability verification, and motherboards or multilayer boards are tested under realistic electrical and mechanical stress profiles to ensure compliance across all PCB layer count classes.
Why Choose WellPCB for High Layer Count PCB Manufacturing?
WellPCB manufactures high layer count PCBs from prototype through production volumes, specializing in HDI, controlled impedance and complex stack up configurations.
Our Shenzhen and Jiangmen facilities combine advanced PCB technology with ISO 9001 and IPC Class 3 certified processes to produce multilayer boards meeting stringent performance requirements for high speed and analog electronics applications.
Ultra Dense HDI Manufacturing
Our HDI PCB architectures support 0.4mm pitch BGA fanout routing while maintaining signal integrity through optimized interconnection geometries for high speed differential pairs across many layers.
Advanced Material Selection
Glass transition temperatures extend from 266°F (130°C) standard to 536°F (280°C) polyimide, enabling PCB performance in extreme thermal environments across multilayer board constructions with copper layers from 0.5 to 5 oz per layer.
Global Support & Local Speed
Advanced PCB technology infrastructure handles concurrent single layer prototypes through complex motherboard production runs with dedicated engineering support teams providing PCB layer count optimization throughout the process.
Built to Industry Standards
We follow IPC guidelines for interconnect and assembly precision, with full compliance with ISO 9001, RoHS and UL standards.
Whether it’s a 2 layer test board or a 24 layer multilayer board, every PCB is built to perform under real world conditions.
Engineering-First Approach
Schematic to PCB design correlation validates types of signal routing through appropriate layer board regions, preventing IC coupling while ensuring the number of layers required optimization with full design rules compliance and CAD integration.
What Are High Layer Count PCBs?
High layer count PCBs are printed circuit boards containing 12 to 64 conductive layers separated by dielectric insulation. These multilayer boards integrate signal layer, power plane, and ground plane configurations within a single circuit board, with each layer providing dedicated routing space for circuitry.
Standard configurations range between 24 layers and 30 layers for complex electronics applications requiring separation between analog and digital types of signals or extensive BGA fanout routing that exceeds single layer or 2 layer board capacity.
How Do High Layer Count PCBs Compare to Standard PCBs?
Standard PCBs have single layer to 4 layer designs with wider traces and basic vias. High layer count PCBs have 12 to 64 layers stacked together, creating more space for circuitry.
This extra layer count means high layer PCB boards can fit 20 times more connections in the same space. They also use thinner traces (3 mil versus 6 mil), smaller vias, and separate power plane and ground plane layers for better performance than 2 layer board or standard multilayer designs.
| Specification | Standard PCBs | High Layer Count PCBs |
|---|---|---|
| Layer Count | Single layer to 4 layers. | 12 to 64 layers. |
| Board Thickness | 0.031" to 0.062” (0.8 to 1.6mm). | 0.120” to 0.315” (3.0 to 8.0mm). |
| Via Capabilities | Through-hole only, 10 to 12 mil minimum. | Blind, buried, microvias (3 mil), stacked. |
| Aspect Ratio | 6:1 maximum. | 15:1 for HDI PCB applications. |
| Trace Width/Space | 6/6 mil typical (1 oz copper). | 3/3 mil minimum. |
| Copper Layers Weight | 0.5 to 2 oz standard. | 0.5 to 5 oz per layer available. |
| Signal Layer Routing | 1 to 2 dedicated layers. | 8 to 20+ dedicated signal layers. |
| Power Plane Structure | Shared or none. | 4 to 12 dedicated power and ground planes. |
| Stack-up Configuration | Simple 2 layer board or 4 layer. | Complex multilayer, asymmetric, HDI. |
| Registration Tolerance | ±8 to 10 mil. | ±5 mil between adjacent layers. |
| Controlled Impedance | Not typically offered. | ±8% tolerance on multiple layers. |
| Component Density | 50 to 200 connections/sq inch. | 1,000 to 10,000 connections/sq inch. |
| BGA Support | 0.8mm pitch minimum. | 0.4mm pitch with high-density routing. |
| Testing Requirements | Basic continuity test. | X-ray for the inner layer, ICT, thermal cycling. |
What Are the Design Considerations for High Layer Count PCBs?
Designing a high layer count PCB involves precise control over the number of layers, stack up structure, and interconnect methods.
Engineers must account for signal and power layer isolation, thermal management, and routing efficiency while maintaining strict impedance and reliability targets. Material properties, via selection, and component layout all directly impact performance and PCB manufacturing success.
Layer Stackup Design
Power Integrity
Thermal Management
Signal Integrity
Component Placement
Via Strategy
Material Selection
Crosstalk Mitigation
Industries We Service with High Layer Count PCBs
WellPCB supplies high layer count PCBs to sectors where dense routing, thermal performance, and controlled electrical behavior are essential. Our builds are engineered to meet the layout, material, and reliability needs of advanced systems with complex PCB layer count requirements.
Aerospace
Medical Equipment
Telecommunications
Computing & Data Centers
Automotive & EV Systems
Industrial Automation & Robotics
How to Order Your High Layer PCB
Submit Your PCB Design
Upload your Gerber files or use our easy online PCB design tool to create your board layout. Make sure your files are complete and correctly formatted to ensure smooth processing and production accuracy.
Select Your PCB Specifications
Customize your order by choosing the technical specifications—number of layers, board dimensions, thickness, copper weight, solder mask color, surface finish, and more. Our intuitive interface helps you configure everything based on your project’s needs.
Get an Instant Quote
Once your design and specs are in place, you'll receive a transparent, instant quote. Pricing updates in real time as you modify options, so you can adjust your selections to match your budget before placing the order.
Confirm Order & Make Payment
Review your entire order for accuracy, including file previews and selected specs. After confirmation, proceed to secure checkout and choose your preferred payment method. You’ll receive an email confirmation with order details.
Production & Delivery
Your PCB moves into production immediately. We’ll keep you updated throughout the manufacturing process. Once completed, your boards are carefully packed and shipped to your door, with tracking information provided for your convenience.
WellPCB is trusted by millions of
businesses and innovators.
Why Choose WellPCB?
WellPCB stands out among USA PCB manufacturers by delivering superior quality, advanced solutions, and unmatched reliability. With years of experience serving global markets, WellPCB has earned a reputation as one of the top PCB manufacturers in USA.
WellPCB specializes in multilayer PCBs for advanced electronic applications. You can order these boards with $100 off using our special offer, providing high complexity at competitive rates for demanding projects.
Hommer Zhao
Founder and Chief Editor – Hommer Zhao
Welcome! I’m Hommer Zhao, the founder and Chief Editor of WellPCB. With years of experience in the PCB industry, I’m committed to making sure our content is both accurate and helpful. We’re proud to serve a growing community of over 4,000 customers worldwide, and our goal is to provide you with the best resources and support. Your satisfaction is our top priority, and we’re here to help you every step of the way!
Jesse Holland
Technical Manager – Jesse Holland
Hi, I’m Jesse Holland, an Engineer and Technical Manager at WellPCB. With years of experience in PCB design and engineering, I’m here to ensure that every project we work on meets the highest technical standards. I lead our team, focusing on precision and innovation, collaborating closely with clients to provide tailored solutions and expert guidance. Whether you’re facing a complex design challenge or need advice on technical aspects, I’m here to ensure your project is a success from start to finish.
Nathan Jensen
Purchasing Manager – Nathan Jensen
Hi, I’m Nathan Jenson, the Purchasing Manager at WellPCB. I’m responsible for sourcing the best materials and components to ensure our products meet the highest quality standards. With my extensive experience in procurement, I work closely with suppliers to secure reliable and cost-effective solutions while maintaining strong relationships to support our operations. I aim to ensure every project runs smoothly by providing the resources needed to deliver on time and to your satisfaction.
Emma
Sales Manager – Emma
Hey, I am Emma, sales manager at WellPCB. I studied electronic science and technology at university and have served customers for PCB and PCB Assembly service for several years.
I enjoy communicating with customers and our technicians to solve problems, and customers always say, "It's great to have you onboard".
It is my pleasure and honour to be helpful. Contact me now, and you'll know.
Bella and Cassiel
Sales Representatives – Bella and Cassiel
We’re Bella and Cassiel, your dedicated sales representatives at WellPCB. With our extensive knowledge of the PCB industry, we’re here to provide exceptional service and support. We take the time to understand your unique needs and are always ready to offer tailored solutions and advice. Whether you need product recommendations, assistance with your orders, or simply have a question, we’re here to ensure your experience is smooth and seamless at every step.
Mandy and Wendy
Sales Representatives – Mandy and Wendy
We’re Mandy and Wendy, your friendly sales representatives at WellPCB. Passionate about helping our customers, we bring a wealth of experience in the PCB industry to provide you with the best solutions and service. We take pride in building strong relationships with our clients, understanding their specific needs, and offering personalised support to ensure their satisfaction. Whether you’re looking for advice, product information, or assistance with any part of your order, we’re here to make your experience as smooth and efficient as possible.
Our Team
Our skilled engineers and technicians bring expertise and precision to every PCB assembly project. Committed to quality, efficiency, and innovation, our team ensures every order meets the highest UL, IPC, ROHS & REACH standards, delivering reliable solutions tailored to your needs.
- Founder and Chief Editor – Hommer Zhao
- Technical Manager – Jesse Holland
- Purchasing Manager – Nathan Jensen
- Sales Manager – Emma
- Sales Representatives – Bella and Cassiel
- Sales Representatives – Mandy and Wendy
High Layer PCB Case Studies
PCB Assembly

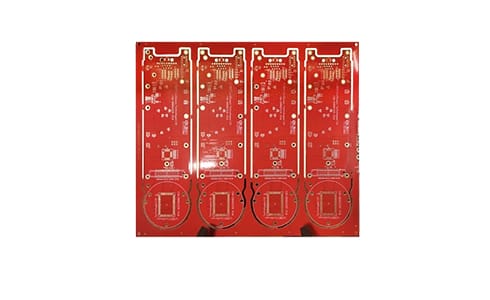

This red 8-layer board utilizes an immersion silver process and a TG170 substrate, offering excellent high-temperature resistance, solderability, and high-frequency performance. It facilitates the design of miniaturized, highly reliable circuits.
Features:
- •Immersion Silver/TG170
- •Hole copper: ≥20um
- •Min hole: 0.2mm
- •Surface copper: ≥35um
PCB Assembly

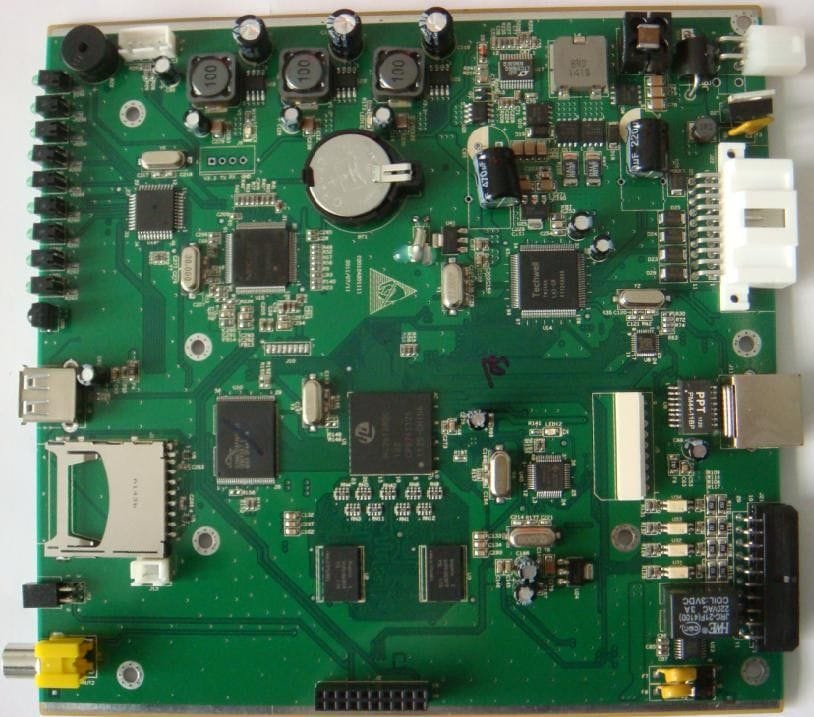

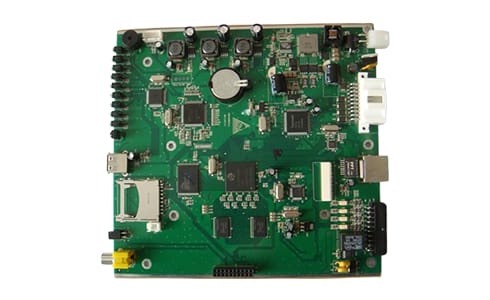

This 16-layer soldered PCB demonstrates exceptional performance and quality. Using Rogers laminate, it offers high-frequency performance and low loss, meeting the stringent signal integrity requirements of advanced fields like communications and radar. The thicker copper layer also provides a higher current-carrying capacity.
Features:
- •16-layer
- •Copper thickness: 3oz
- •Material: Rogers
- •Line Width / Line Space: 3 mil / 3 mil
PCB Assembly

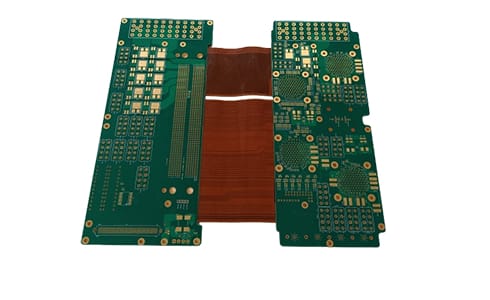

This 26-layer rigid-flex PCB is designed specifically for aerospace and military applications. Combining FR4 and PI materials, it provides both rigid support and flexible adaptability. With a thickness of 4.0mm ±10%, it features eight flexible layers and a layered design. With line widths and spacings of 4.5/6.0 mils, it meets the demands of high-density, high-precision circuits. Complying with military standards, it provides an efficient and stable circuit interconnect solution, ensuring stable operation of electronic systems in complex environments.
Features:
- •Material: IT180A+PI
- •Board thickness: 4.0mm
- •Features: 8 flexible layers
- •Min line width/space: 4.5/6mil
- •Application: Industry control
High Layer Count PCB Client Feedback
As an R&D manager, I have had an outstanding experience working with WELL-PCB. For many years, our company has entrusted them with the production, assembly, and programming of the boards developed in our R&D unit, and they have consistently exceeded our expectations.
Hamid Reza Moshayedi
R&D Manager
Their work is very impressively perfect. Today, when they check our company PCB board after assemble. They found a fake short point which many engineers has never found in the past years. But that is just designed so. The PCB board quality is excellent. Their service is also excellent.
MikeZ
My friend introduced WellPCB to me, the first try, a little look forward to. I ordered a 47*72 10ps PCB, and I can’t wait to receive my PCB. So I used expedited service and received my PCB in three days. I tested and soldered the PCB, Quality is really good, silkscreen, plating also great.
Warren Cliton
High Layer Count PCB FAQs
How do you ensure thermal management in high-power applications?
We manage heat in high layer count PCBs using a combination of thermal vias, copper layers up to 5 oz, and well-structured power plane layouts.
For builds with elevated current loads or dense IC zones, we apply optimized stack up configurations, use high thermal conductivity substrates, and reinforce heat flow paths with internal ground planes. Solder mask clearance and plated via filling are also adjusted to improve heat dissipation across all layers.
How is aspect ratio managed during drilling of many layers?
For high layer count PCBs, aspect ratio is controlled by balancing drill diameter with total board thickness and selecting appropriate via types.
We support mechanical drills down to 0.15 mm and laser microvias as small as 3 mil. In 30 layer and higher builds, we reduce via depth using blind, buried, or stacked vias to maintain plating quality and interconnect reliability. All drilling processes follow IPC guidelines for multilayer PCB manufacturing.
What methods are used to control warpage and twist during
To limit warpage and twist in high layer count PCBs, we apply symmetrical stack-up designs, uniform copper distribution across adjacent layers and controlled lamination cycles.
Core-to-prepreg balance and consistent layer alignment are maintained throughout fabrication. For boards exceeding 24 layers, tighter wrap/twist specs are applied, and materials with low CTE are selected to maintain dimensional stability across all PCB layers.
Which techniques are used to detect internal shorting in complex layer structures?
Internal shorts in high layer count PCBs are identified using a combination of flying probe, X-ray, and automated electrical testing.
For multilayer and stacked via builds, layer-by-layer validation includes microsection inspection and continuity checks across all copper layers. These methods locate buried faults early in the process, improving long term reliability and meeting IPC-6012 testing standards.
